Smart Viewer 8吋觸控高解析 工業內視鏡
– 720p高清鏡頭+7吋高清LCD螢幕, 絕佳搭配.
– 主機內建驅動定位訊號之發射功能.
– 靈活的支架設計與萬向關節搭配, 便於螢幕任意調整至最佳視角, 使操作增加靈活度.
– 符合人體工學手提帶, 與左右手都便於操作之手持設計.
– 可外接PS2鍵盤, 輸入文字註記.
– 內建收音與放音功能, 可以錄影方式輸入語音註記.

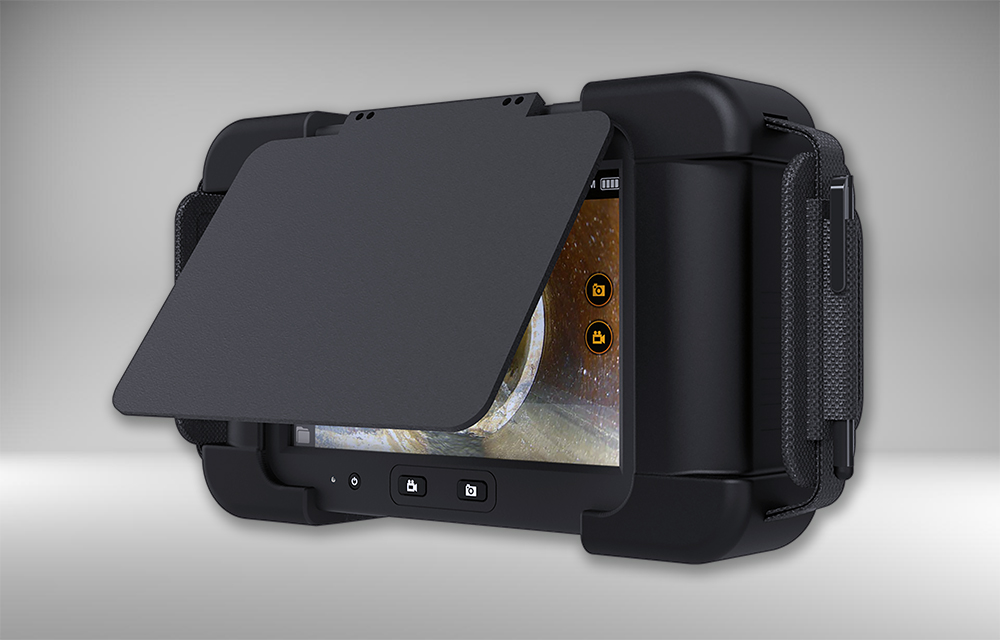

– 具備螢幕保護蓋, 能保護螢幕更便於戶外遮陽使用.
– 內建可重複充電之鋰電池, 供應電力達6小時.
– 拍攝之影像與視頻可儲存於SD卡.

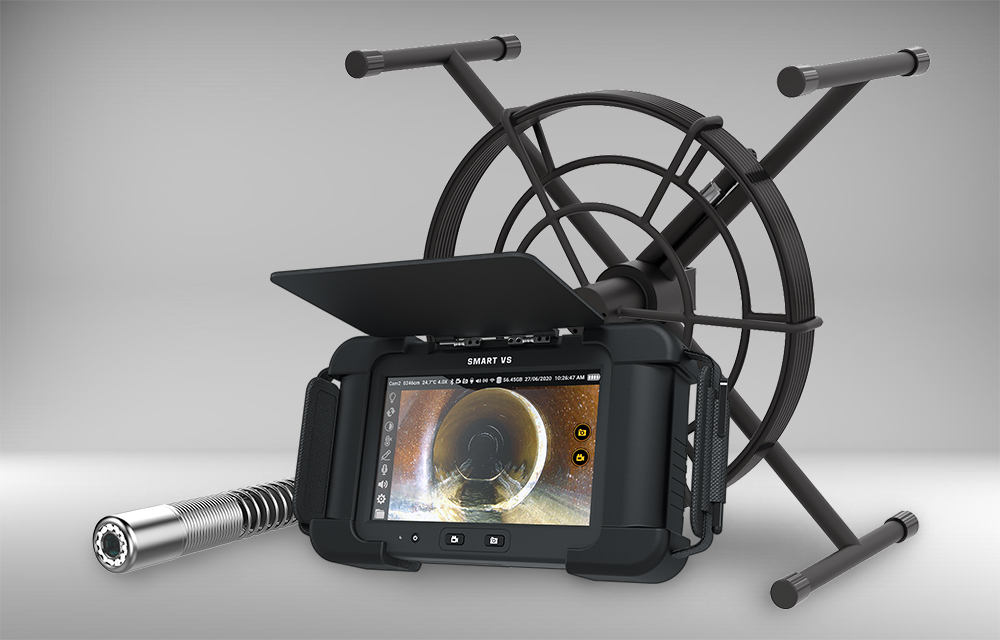

Smart Viewer
八吋觸碰式高解析 工業內視鏡檢測系統
真正的 720P 高解析鏡頭，圖像清晰
Smart Viewer is our newest innovation to use 720p HD camera in remote visual inspection and NDT inspection. Not just a high definition display with scale up VGA image, a true HD camera with crisp clear image provides professional users the best inspection facts for their maintenance jobs. Special Dual-Cam-Input design is suitable for different applications. Professionals can choose from 2.5mm digital camera to 30mm analog cameras based on the pipe sizes and their inspection needs. Locating function is integrated at the camera modules. A true-multi-application main unit.
| Controller / Main Display Unit / Console | |

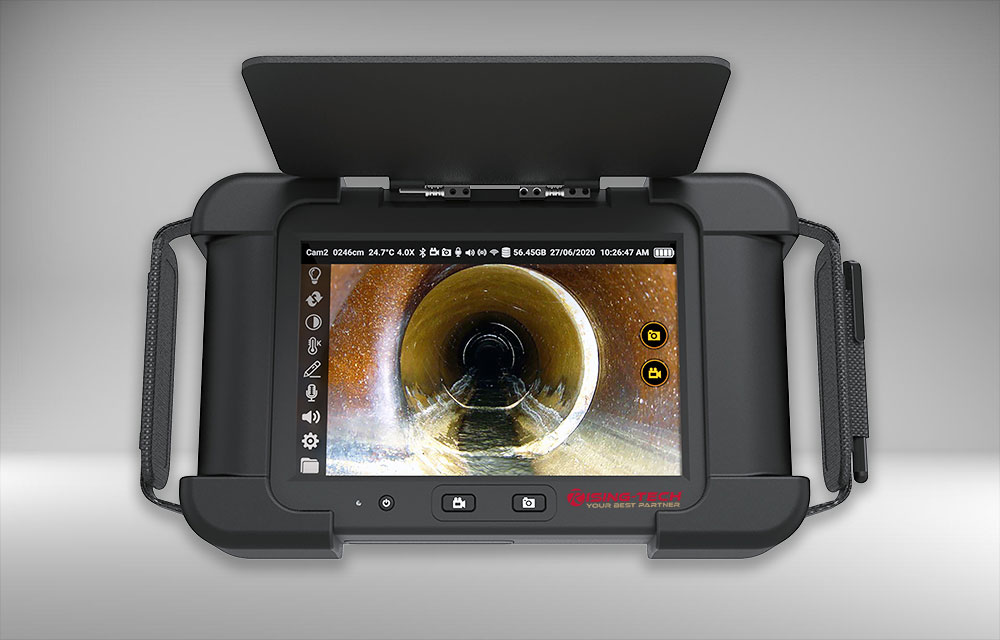

| Display | 8" 1280x 800 pixels IPS, Brightness 450nit Capacitive Multi-Touch, Corning Gorilla Cover Glass |
| Image / Video recording | Resolution: 1280x 800 Pixels |
| USB | Type A, Multi-Purpose, USB Flash Drive, USB Keyboard, and USB Joystick |
| WiFi | 802.11b/g/n, WPA2, H.264 RTSP video streaming |
| HDMI | Type A 1080P60 output for External Monitor |
| Bluetooth | 4.0 pan-tilt control, mic, headphone & keyboard |
| Dual Camera Inputs | Digital Camera / Analog Camera Inputs |
| Camera System | Suports standard, pan-tilt, articualtion, self-leveling camera system |
| Battery | Rechargeable 14,700 mAh Li-ion Battery |
| DC Power | 15V / 3A for battery charging and direct power operation |
| Storage temperature | -20 ~ 60 °C |
